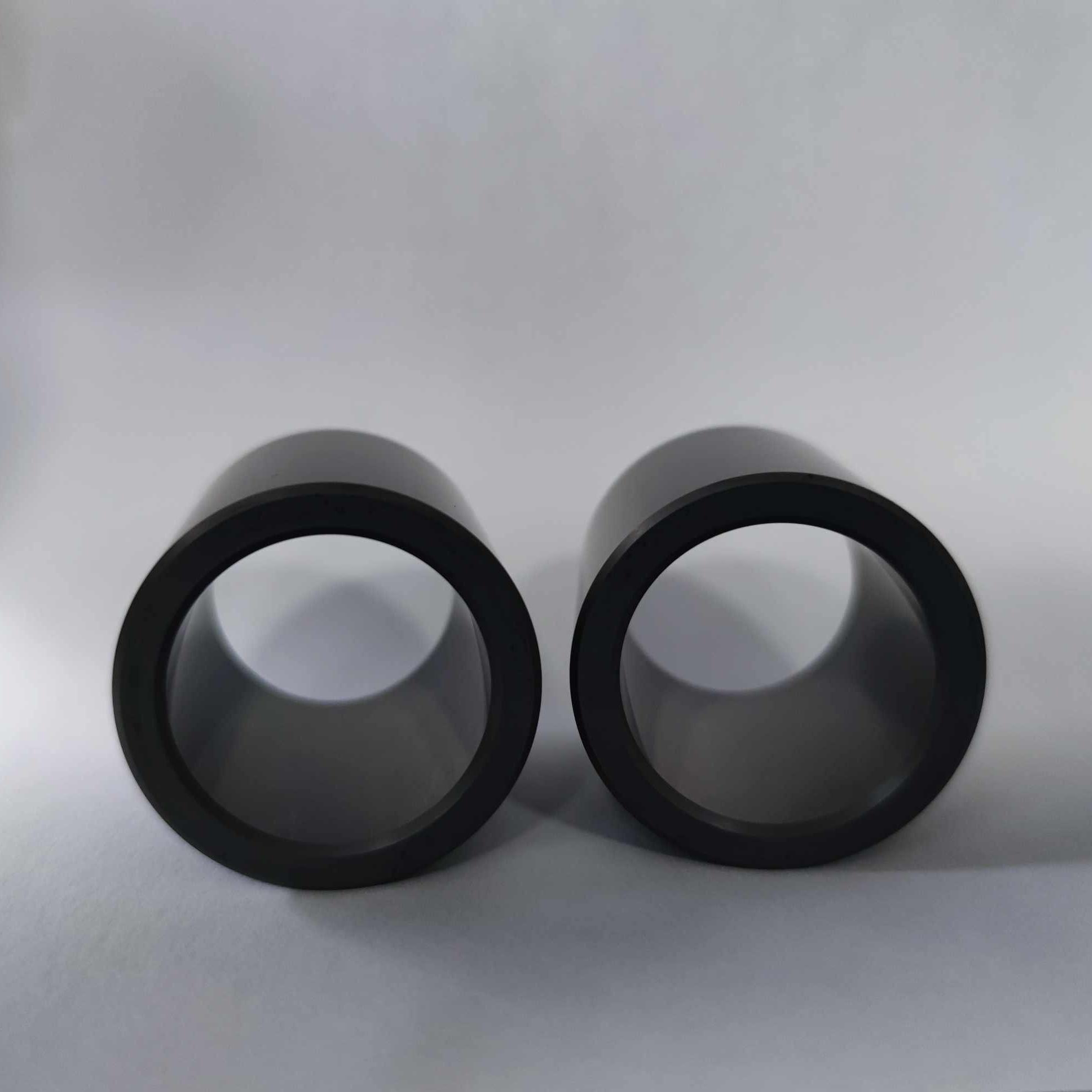

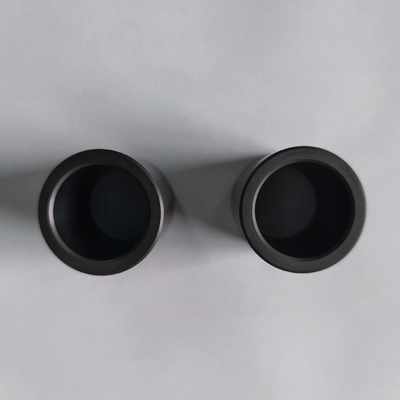

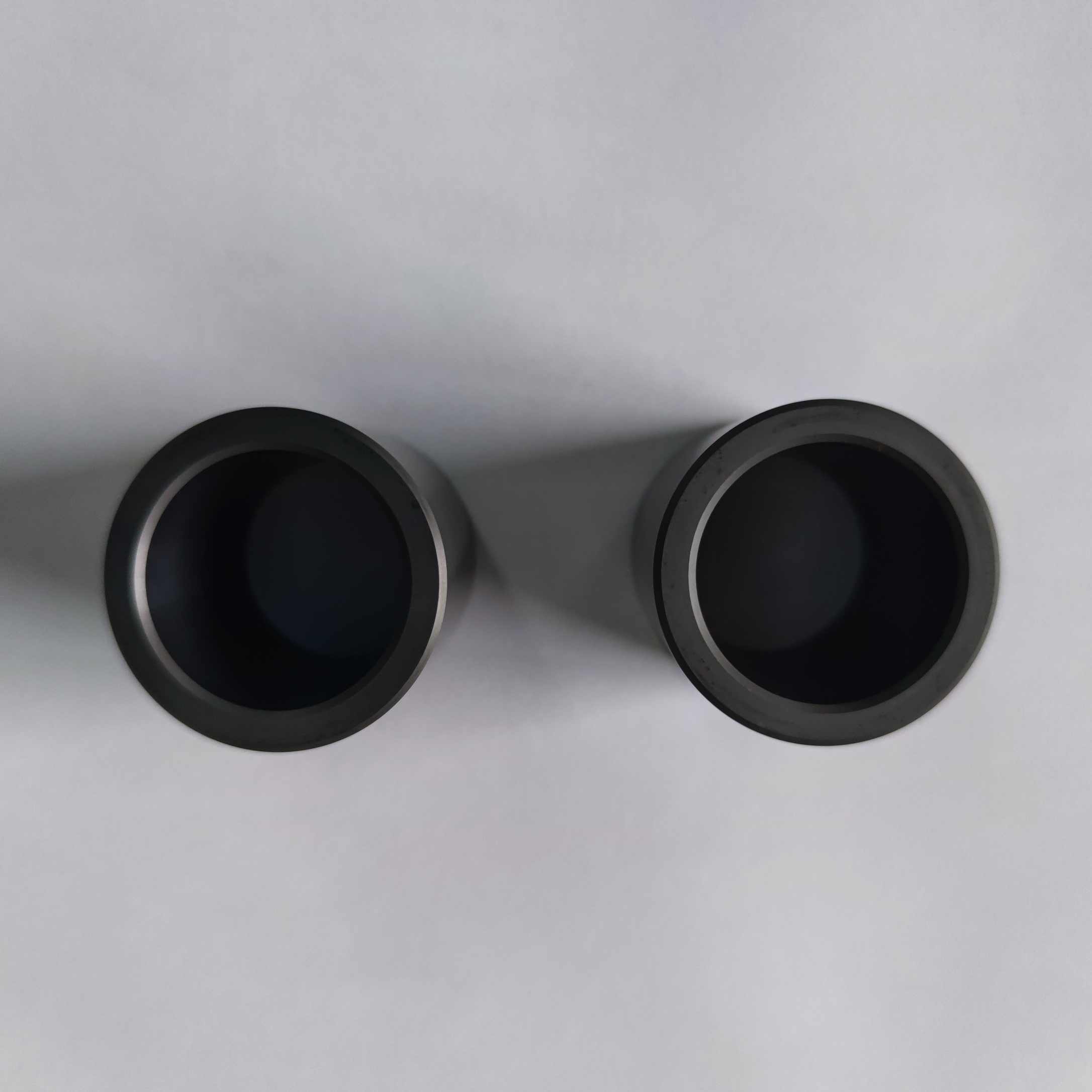

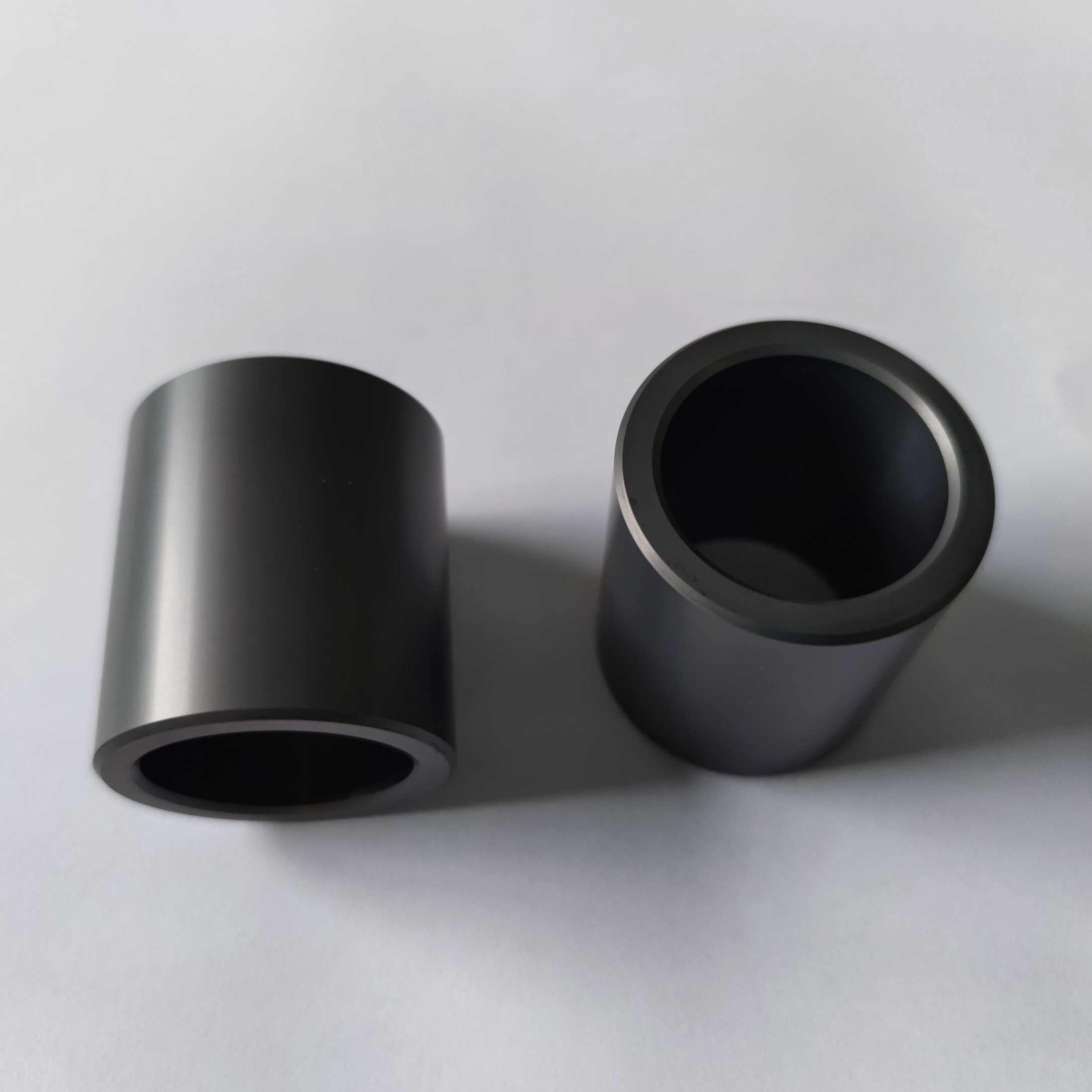

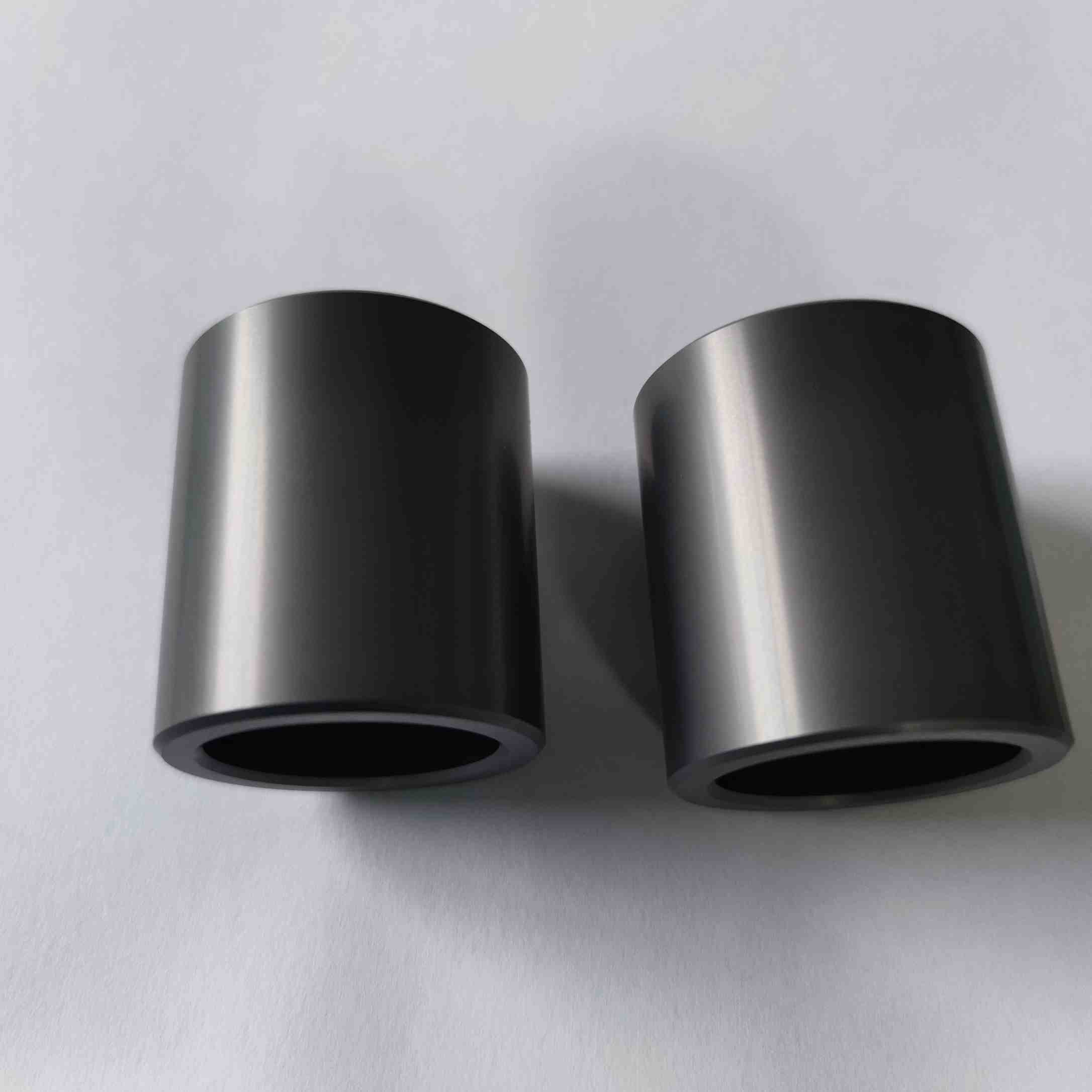

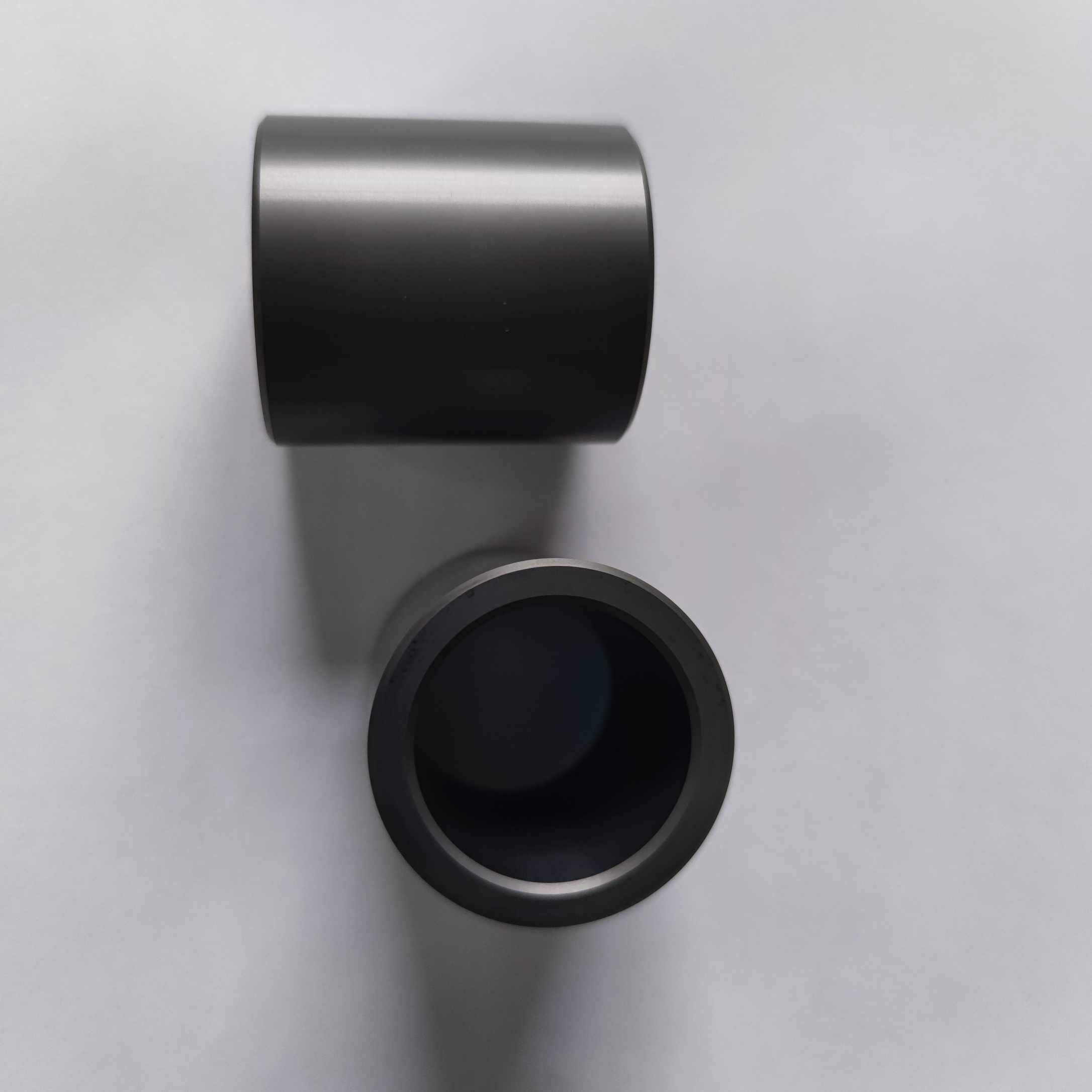

SSIC Ceramic Sliding Bearing for Pump Sleeve Thermal Expansion Difference Compensation

Description of Sliding Bearing Sleeve:

Overview

The silicon carbide (SiC) sleeve is precision-engineered from high-purity SiC material, offering exceptional wear resistance, corrosion resistance and high-temperature stability. Widely used in rotating equipment across chemical, mechanical and energy industries, it is particularly suitable for long-term operation under harsh conditions including high speed, strong corrosion and extreme temperatures.

Material Properties

Silicon carbide ceramics exhibit outstanding mechanical properties at room temperature, including high strength, hardness, and elastic modulus. They also demonstrate excellent thermal stability with high thermal conductivity, low thermal expansion coefficient, as well as remarkable specific stiffness and optical machining characteristics.

Key Features

• Superior Wear Resistance: Mohs hardness 9.5, 5-10x lifespan vs metal sleeves
• Excellent Corrosion Resistance: Withstands strong acids/alkalis
• High-Temperature Stability: Maintains performance up to 1650°C
• Low Friction: Precision polished surface
• Lightweight: 1/3 density of steel reduces operational load

Technical Specifications

Typical Applications

• Mechanical seals for chemical process pumps
• Rotary components in semiconductor equipment
• Bearing assemblies for molten salt pumps
• Specialized nuclear industry equipment

Key Features Superior Wear Resistance: Mohs hardness 9.5, 5-10x lifespan vs metal sleeves Excellent Corrosion Resistance: Withstands strong acids/alkalis (pH 0-14) High-Temperature Stability: Maintains performance up to 1600°C Low Friction: Precision polished surface (Ra≤0.4μm optional) Lightweight: 1/3 density of steel reduces operational load Technical Specifications Parameter Value Material Purity ≥99.5% α-SiC Density 3.10-3.20 g/cm³ Flexural Strength ≥350 MPa Thermal Conductivity 120-200 W/(m·K) Max Operating Temp 1600°C (inert atmosphere) CTE 4.5×10⁻⁶/°C (RT-1000°C) Typical Applications Mechanical seals for chemical process pumps Rotary components in semiconductor equipment Bearing assemblies for molten salt pumps Specialized nuclear industry equipment

Why Choose Us

1.Professional team

Our company logo is ZXSQ and CSQ, and possesses eleven invention patents for utility models. The company now has a high-quality professional team consisting of dozens of members, to provide you with high-quality and perfect service, according to customer requirements to order a variety of bearing products.

Since the year of 1982 we have accumulated abundant experience in the production over the past more than 40 years, devoting ourselves whole -heartedly to the research and development of ceramic bearing material, our processing technique and improvement of our equipments.

Having undergone several evolution and transformation, our company has now become the leading enterprise in China domestic market in the fields of ceramic bearing and ceramic material products.

2.Strength factory

At present, we have a fully automatic grinding and assembling production line for ceramic bearings, with an annual output of 3 million sets of 608-2PS, 608-2RS and other specifications of P5 and P4 precision levels. Our company is equipped with rolling bearing 608 automatic production line, specializing in the production of various types of rolling bearings and ceramic balls, ceramic rollers.

Firing equipment and technology leading in the industry. Our company has the most high-end equipment in the field of domestic industrial ceramics production, in addition to the hot isostatic sintering furnace (HIP) imported from ABB Sweden. Our company also has other production equipment, the product firing temperature has been raised to more than 2000℃.

FQA

Q:Who are we?

A:We are a factory in Beijing, China. We have been producing and selling ceramic bearings for more than 40 years. We have established friendly cooperative relations with many domestic and foreign companies.

Q:How can we guarantee quality?

A:We always produce samples before mass production, and produce in strict accordance with customer requirements and production regulations. After the completion of production, we will use inspection equipment to carry out precise inspection of products, and our packaging adopts the double insurance of foam and carton, to strictly ensure the quality of products.

Q:What can you buy from us?

A:Ceramic deep groove ball bearings, ceramic angular contact ball bearings, hybrid ceramic ball bearings, ceramic linear bearings, etc and all kinds of ceramic balls.

Q:Why should you buy from us not from other suppliers?

A:We are an industry and trade integrated company, we have three factories, with today's production and inspection equipment, can provide better delivery dates and product quality.

Q:What service can we provide?

A:We will provide high quality products and customized services, which can be fully customized according to user needs. We can provide samples for customer's confirmation.

Welcome your enquiry

We supply bearings, high quality products, if you need to buy or consult the price of bearings, please contact us. We are a set of bearing research and development, production, sales, service in one of the professional bearing company, providing bearing products and related technical services. We choose high quality raw materials, carefully do each set of bearings.

We adhere to customer demand as the guidance, and strive to provide customers with quality products and after-sales service, create value for customers, do customers partner. Welcome to discuss the cooperation!
