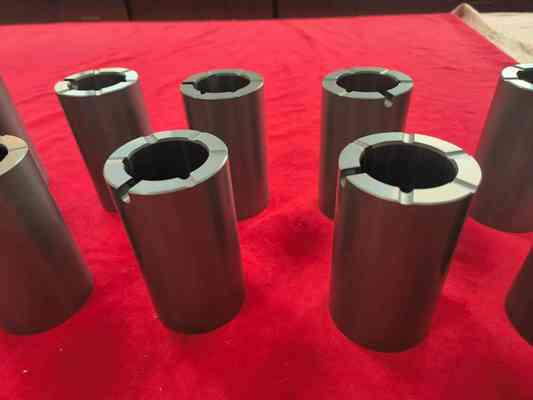

Self-Lubricating Silicon Carbide Ceramic Sliding Bearing Sleeve
| Menşe yeri | ÇİN |
|---|---|
| Marka adı | CSQ |
| Sertifika | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Model numarası | Özelleştirilmiş ürünler |
| Min sipariş miktarı | 20-50 adet |
| Fiyat | negotiable |
| Ambalaj bilgileri | Köpük+karton kutusu |
| Teslim süresi | 20-45 iş günü |
| Ödeme koşulları | T/T |
| Yetenek temini | Ayda 2000 adet |
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| İsim | Özelleştirilmiş seramik sürgülü manşon yatağı | Kategori | Seramik Sürgülü Yatak |
|---|---|---|---|
| Malzeme | Silikon karbür | Boyut | Çizimlere göre özelleştirilmiş |
| Uygulama | Pompalar | Paketi | Köpük+karton kutusu |
| Kalite | Yüksek hassasiyet, uzun ömür, OEM serisi | Spesifikasyon | Standart boyut ve özelleştirilmiş |
| Vurgulamak | Self-lubricating ceramic sliding bearing,Silicon carbide bearing sleeve,Ceramic sliding bearing with warranty |
||
Ürün Açıklaması
Silicon Carbide Ceramic Sliding Bearing Sleeve
Product Overview
Silicon Carbide (SiC) sleeves are high-performance ceramic components manufactured from SiC. They exhibit exceptional wear resistance, corrosion resistance, high hardness, and thermal stability, making them ideal for bearings, seals, and transmission systems in harsh environments across industries like chemical processing, machinery, semiconductors, and energy.
Key Features
- Superior Hardness & Wear Resistance: Mohs hardness of 9.5 (second only to diamond), ensuring extended service life.
- Excellent Corrosion Resistance: Resists strong acids, alkalis, and organic solvents, suitable for chemical equipment.
- High-Temperature Stability: Maintains performance up to 1400°C without oxidation or deformation.
- Low Thermal Expansion: High thermal conductivity and thermal shock resistance for rapid temperature cycling.
- Self-Lubricating: Low friction coefficient reduces energy consumption and maintenance.
Applications
- Chemical Industry: Pumps, valves, reactor seals.
- Machinery: High-speed bearings, precision components.
- Semiconductors: Wafer handling fixtures.
- New Energy: Photovoltaic and lithium battery production equipment.
Properties
| Max Temperature | up to 1650℃ |
| Low density | 3.15-3.18 g/cm3 |
| Low thermal expansion | 4.0 (10-6/℃) |
| High thermal conductivity | 120 W/m°K |
| High hardness | 2800 HV5 |
| High elastic modulus | 410GPa |
| Chemical stability | Superior resistance to acid and alkali corrosion (including hydrofluoric acid) |
Advantages of All-Ceramic Bearings vs. Steel Bearings
- Higher Temperature Resistance: Maintain superior mechanical stability at elevated temperatures.
- Superior Performance in Thermal Cycling: Minimal clearance changes under temperature fluctuations.
- Enhanced Anti-Seizure & Anti-Jamming Properties: Reduced thermal deformation minimizes friction-induced binding.
- Oil-Free Operation Capability: Self-lubricating properties enable reliable performance in high-vacuum environments.
- Exceptional Corrosion Resistance: Impervious to acids, alkalis, and salts.
- Electrical Insulation & Anti-Static Properties: Non-conductive, eliminating static discharge.
- Non-Magnetic & Contamination-Resistant: Prevents magnetic particle adhesion in sensitive environments.
Why Choose Us
We have three factories in China with advanced pressing, sintering and processing machines to meet diverse customer needs. Our company (ZXSQ and CSQ brands) possesses eleven invention patents for utility models and has a professional team dedicated to providing high-quality ceramic bearing solutions.
Since 1982, we have accumulated over 40 years of experience in ceramic bearing production, continuously improving our materials, processing techniques, and equipment. We are now a leading enterprise in China's ceramic bearing and ceramic material products market.
We have extensive experience producing both external and internal gear pump sliding bearings in silicon carbide material, including supplying SSiC sliding bearings to Germany's Witte for many years.
Our Bearing Advantages
- Free sample bearings available
- ISO Standard compliant
- In-stock bearings ready for immediate shipment
- Small order quantities accepted
- OEM bearing services
- Customized bearings based on your drawings or samples
- Competitive factory pricing
Frequently Asked Questions
Q: Who are we?
A: We are a factory in Beijing, China with over 40 years of experience producing ceramic bearings. We have established cooperative relationships with many domestic and international companies.
Q: How do we guarantee quality?
A: We produce samples before mass production and strictly follow customer requirements. Our quality control includes precise inspection using specialized equipment, and we use foam and carton packaging for double protection.
Q: What products do we offer?
A: We provide ceramic deep groove ball bearings, angular contact ball bearings, hybrid ceramic ball bearings, linear bearings, and various ceramic balls.
Q: Why choose us over other suppliers?
A: As an integrated company with three factories and modern production equipment, we offer better delivery times and product quality at competitive prices.
Q: What services do we provide?
A: We offer high-quality products, full customization, and sample confirmation services to meet your specific requirements.
Welcome Your Enquiry
We maintain strong relationships with raw material suppliers to ensure consistent product quality and stable pricing. When necessary, we can produce raw materials ourselves. Customer satisfaction is our priority - we strive to provide excellent products and after-sales service, creating value as your trusted partner. Contact us today to discuss potential cooperation!
