Customized Full Ceramic Ball Bearings With High Temperature Resistance, Wear Resistance, and Corrosion Resistance

  • Customized Full Ceramic Ball Bearings With High Temperature Resistance, Wear Resistance, and Corrosion Resistance
  • Customized Full Ceramic Ball Bearings With High Temperature Resistance, Wear Resistance, and Corrosion Resistance
  • Customized Full Ceramic Ball Bearings With High Temperature Resistance, Wear Resistance, and Corrosion Resistance
Menşe yeri Çin
Marka adı CSQ
Sertifika FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Model numarası özelleştirilmiş
Min sipariş miktarı 50 adet
Fiyat negotiable
Ambalaj bilgileri Köpük+Cartom Kutusu
Teslim süresi 20-45 iş günü
Ödeme koşulları T/T
Yetenek temini Ayda 3000 PC
Ürün ayrıntıları
Başvuru Jiroskoplar, Turbo Pompalar, Uçuş Kontrol Sistemleri Yük Kapasitesi yüksek yük kapasitesi
Boyut özelleştirilmiş Malzeme Tam seramik
Türler Açık veya mühürlü veya tam seramik top Kesinlik çizimlere göre
Vurgulamak

High Temperature Resistance Full Ceramic Ball Bearings

,

Wear Resistance Ceramic Ball Bearings

,

Corrosion Resistance Zirconia Ceramic Bearings
Mesaj bırakın
Ürün Açıklaması

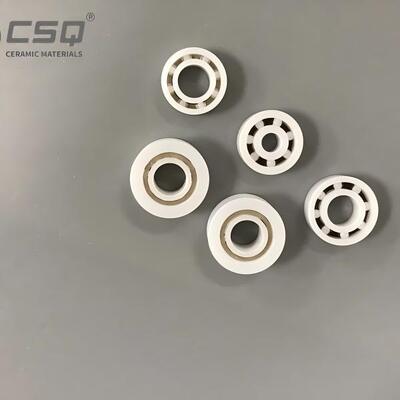

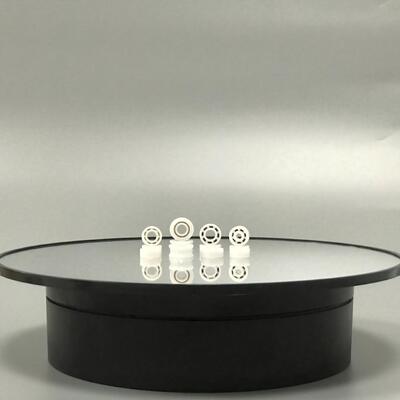

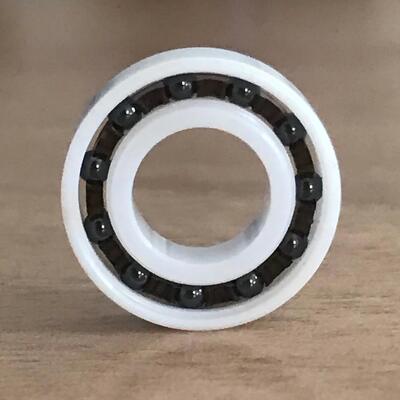

Customized Full Ceramic Ball Bearings
Full ceramic bearings are precision-engineered from high-performance ceramic materials including Zirconia, Silicon Nitride, and Silicon Carbide for the inner ring, outer ring, and rolling elements. These advanced bearings deliver superior durability and reliability in extreme operating conditions compared to traditional steel bearings.
Designed specifically for high-speed rotation, corrosion resistance, non-magnetic properties, electrical insulation, and high-temperature environments, full ceramic bearings provide optimal performance for demanding industrial applications.
Key Advantages
Corrosion Resistance
Full ceramic bearings demonstrate exceptional chemical inertness, resisting acids, alkalis, salts, and organic solvents. Ideal for highly corrosive environments including chemical processing, electroplating, seawater desalination, and medical equipment.
High-Temperature Resistance
Ceramic materials maintain high hardness and dimensional stability at elevated temperatures. Full ceramic bearings operate continuously in environments ranging from 500°C to 800°C, significantly exceeding the temperature limits of standard bearing steel (approximately 150°C).
Non-Magnetic & Electrical Insulation
These non-magnetic bearings eliminate magnetic field interference, making them perfect for MRI equipment, aerospace navigation instruments, and semiconductor manufacturing. Their excellent electrical insulation properties prevent current passage and avoid electric erosion.
Lightweight & High-Speed Performance
With ceramic material density approximately 3.2 g/cm³ (only 40% of bearing steel's 7.8 g/cm³), centrifugal force on rolling elements is significantly reduced. This enables higher limiting speeds (high DN value) with less heat generation in high-speed rotating applications.
Material Specifications
Material Type Features Cage Typical Uses
ZrO₂ Wear resistance; Ionic electrical conduction; Use temperatures up to 2400℃ PEEK, PTFE, or Full Complement Precision ball valve balls and seats
Si₃N₄ High hardness; High fracture toughness; Good chemical resistance PEEK, PTFE, or Full Complement Rotating bearing balls and rollers
SiC High strength; High elastic modulus; Excellent thermal shock resistance PEEK, PTFE, or Full Complement Fixed and moving turbine components
Lubrication Options
  • Dry Running (No Lubrication): Utilizes ceramic self-lubricating properties, suitable for vacuum environments or absolutely clean conditions to prevent lubricant contamination.
  • Grease Lubrication: Employs specialty greases like Perfluoropolyether (PFPE) offering high temperature resistance and strong chemical inertness.
  • Oil Mist/Oil Bath: Ideal for ultra-high-speed rotation, effectively removing frictional heat.
Selection Parameters
To ensure proper bearing selection, please confirm the following parameters:
Parameter Description
Type Deep Groove, Angular Contact, Needle Roller, etc.
Size ID × OD × Width
Material Zirconia / Silicon Nitride / Silicon Carbide
Cage PEEK / PTFE / Stainless Steel / Full Complement
Work Environment Temperature, Medium, Speed, Load
Customized Full Ceramic Ball Bearings With High Temperature Resistance, Wear Resistance, and Corrosion Resistance 0
Our full ceramic bearings undergo precision grinding and rigorous quality inspection to ensure stable operation under harsh conditions. For special customization requirements including non-standard sizes or hybrid ceramic bearings, please contact our technical team for expert assistance.
